Century Series #2 - Monogram F-101B Voodoo 1/109

291 views
8 replies
1 rating 2 rating 3 rating 4 rating 5 rating
  • Member since
    January 2015
  • From: Katy (Houston), TX
Century Series #2 - Monogram F-101B Voodoo 1/109
Posted by Aggieman on Tuesday, March 24, 2020 9:32 AM

Some of my earliest memories are Monogram kits that came in baby blue boxes.  The first kit I built, with help from my Dad, was Monogram's P-40B Flying Tiger.  Over the years of my childhood, I built all of those Monogram kits at one point or another, or even multiple times.  So with eBay making old things available again, I set out to acquire as many of those old baby blue box kits as I could get my hands on.  I managed to get all but maybe 2 or 3 of them.  The Voodoo was actually difficult to find, and was one of the last I acquired.

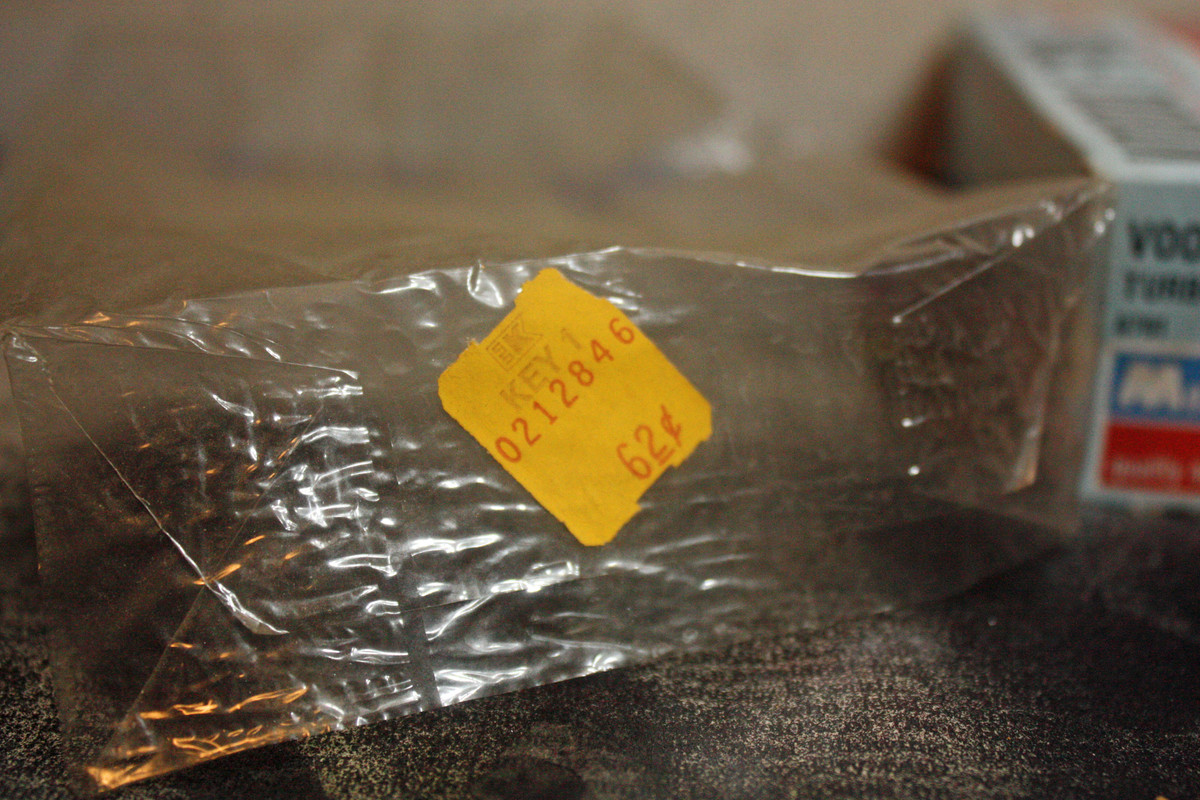

The kit I bought still had the celephone wrapping on it with its price tag.

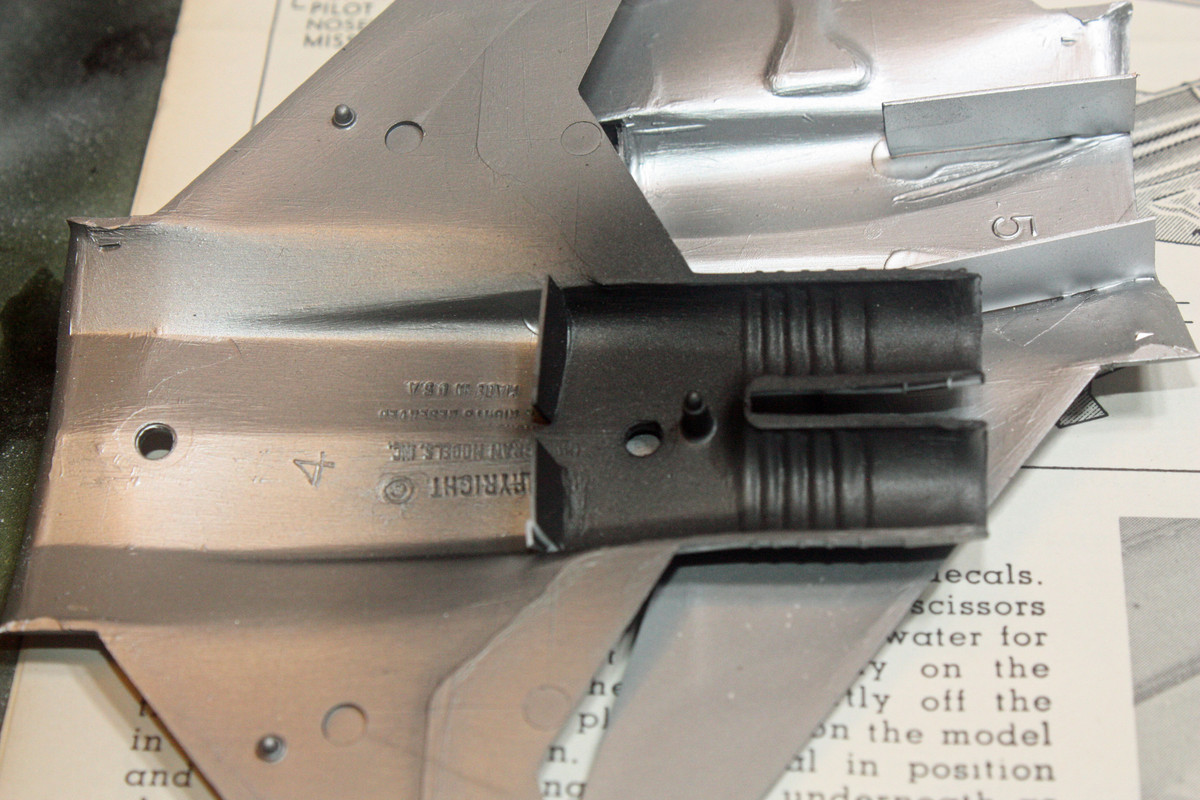

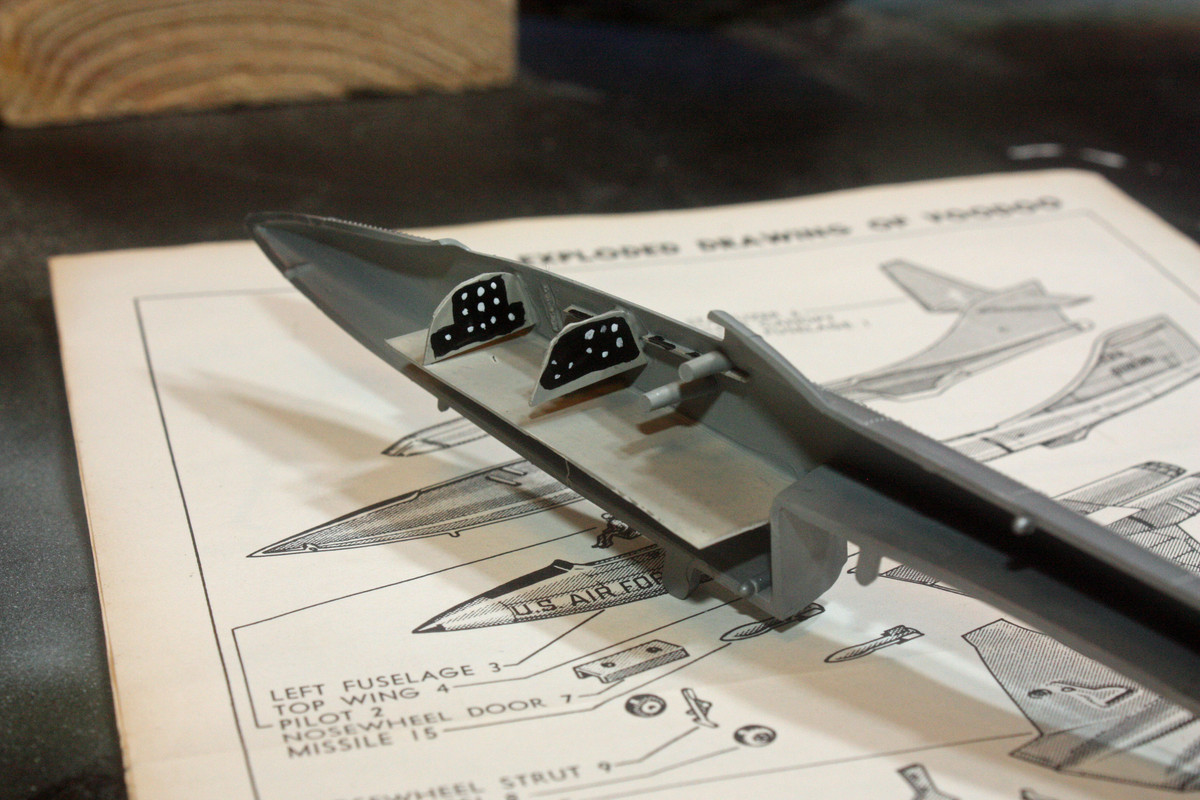

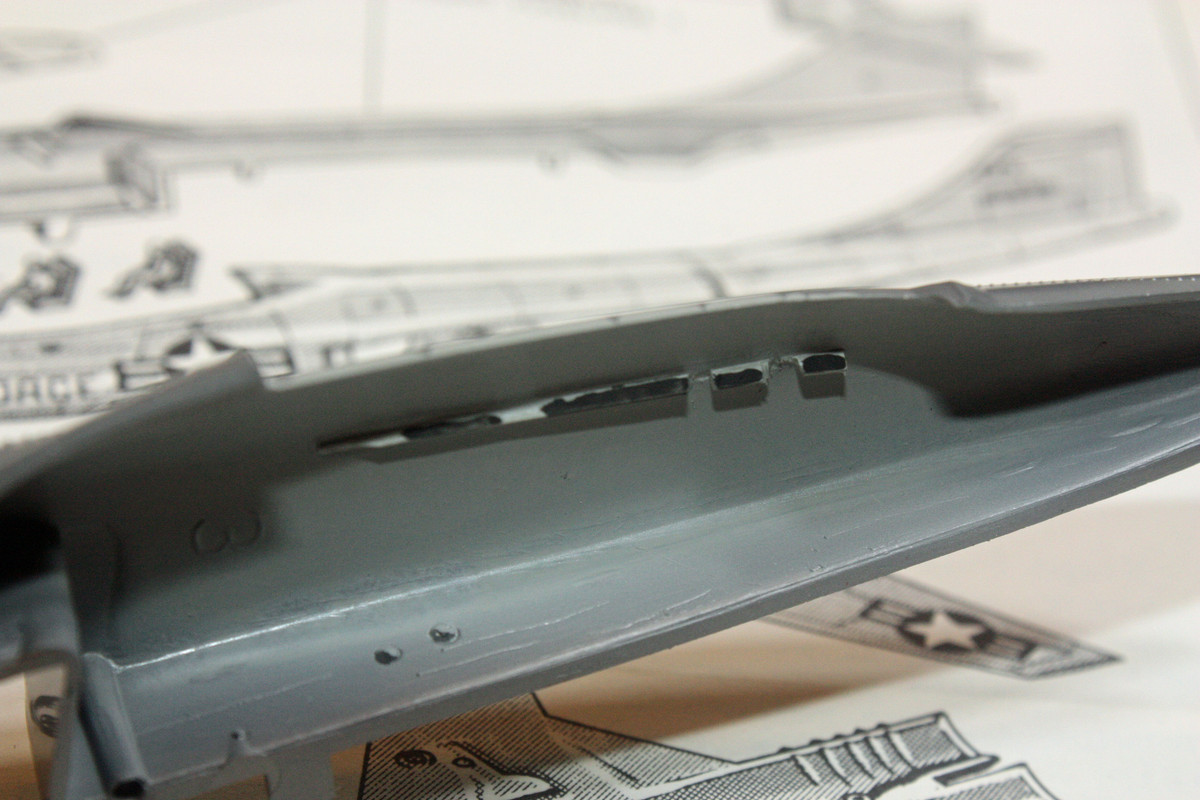

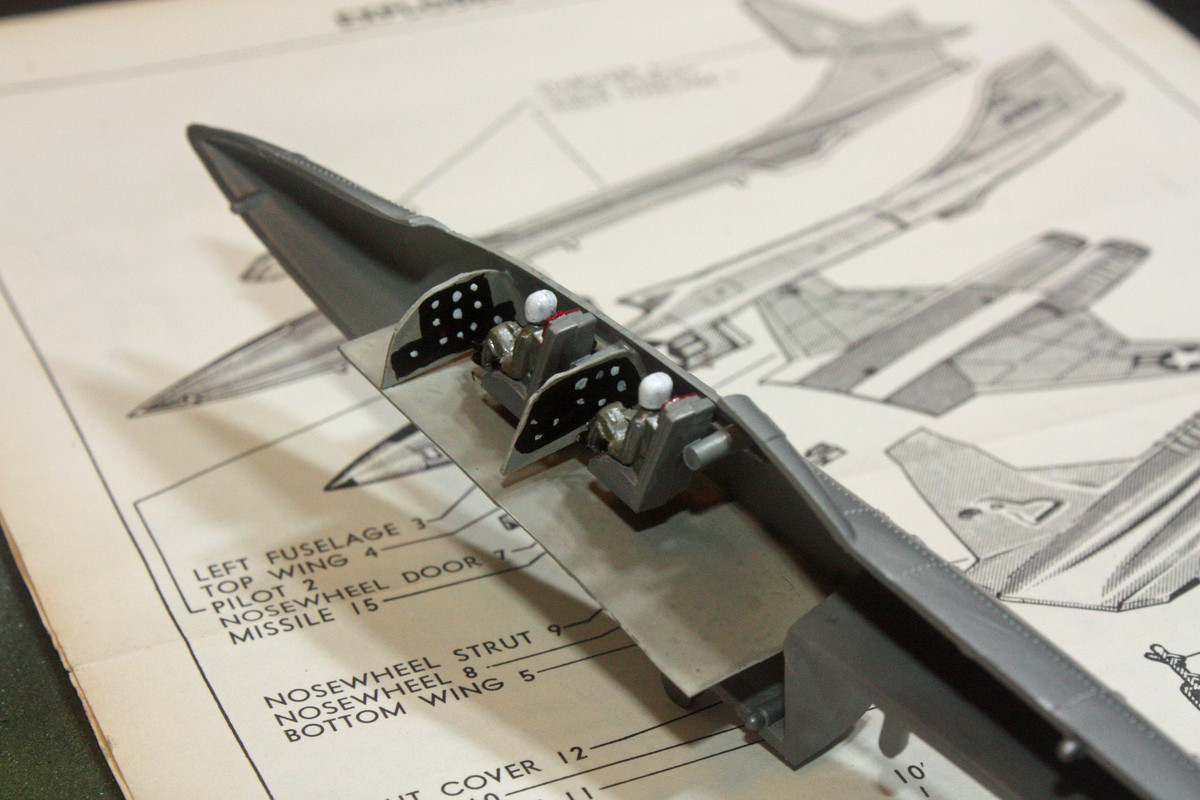

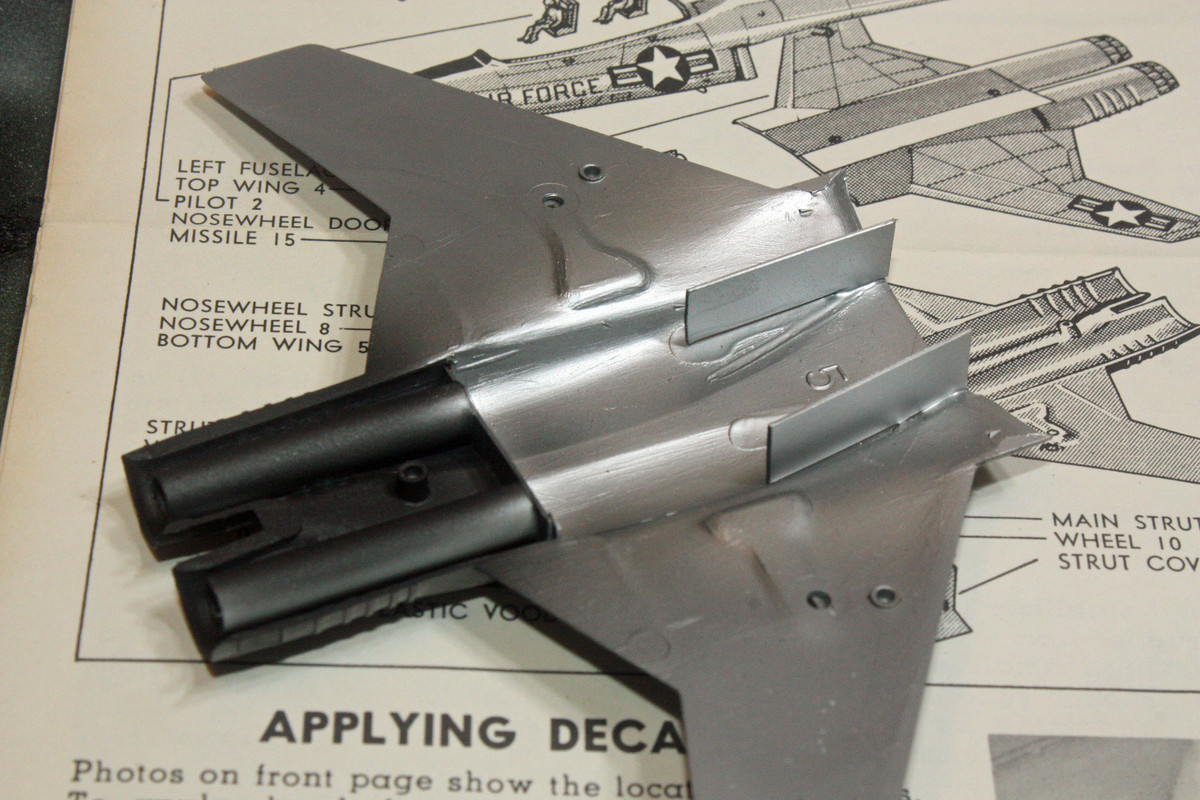

Anyone who has ever built any of these old Monogram kits knows that they typically are light on details, especially these smaller box scale kits like this one.  I previously built the Wildcat and Bf110, and took the opportunity to add details where I could in those builds.  Ditto for this one, despite its diminuitive scale.  I added sheet styrene as bulkheads, air intake trunking, and the cockpit, and some tubing into the engine exhaust cans.  Had I not added the bulkheads, trunking, and tubing, there would have been an empty hole from intakes to exhaust, like a Red October with its caterpillar drive I suppose.

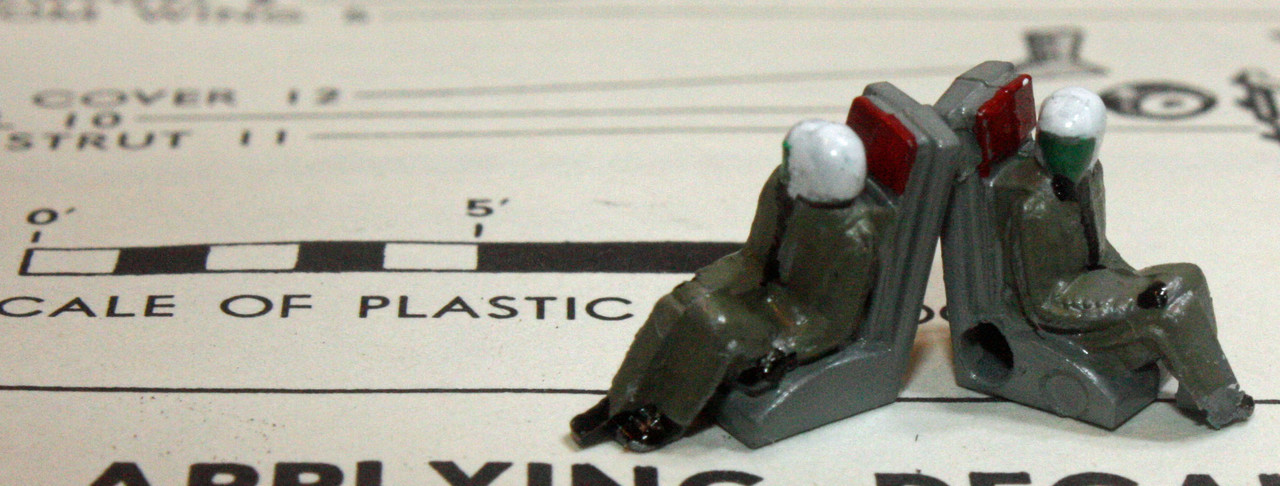

The pilots looked like astronauts or something out of The Right Stuff.

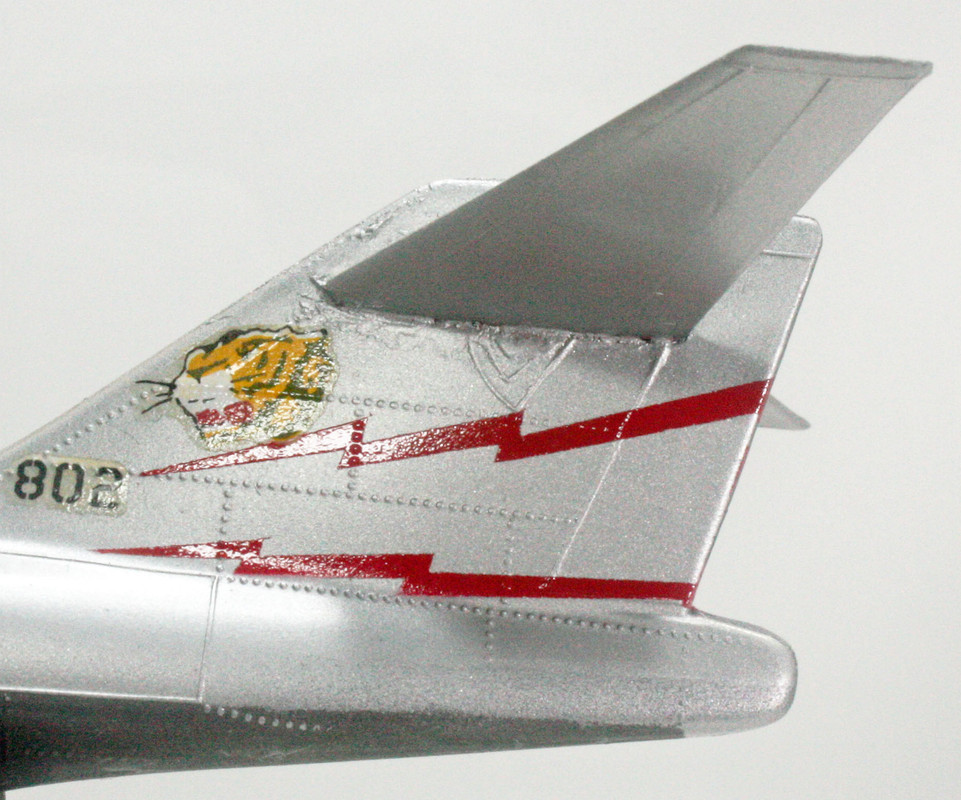

I painted this Voodoo with Tamiya's bare metal silver spray paint, with some Vallejo black, Tamiya red, Tamiya white, Tamiya sky blue, and Model Master Metalizer titanium.  The markings that I painted - the red lightning bolts and the blue and white mid-fuselage striping - were inspired by a Voodoo of the 60th Fighter Interceptor Squadron in 1970.

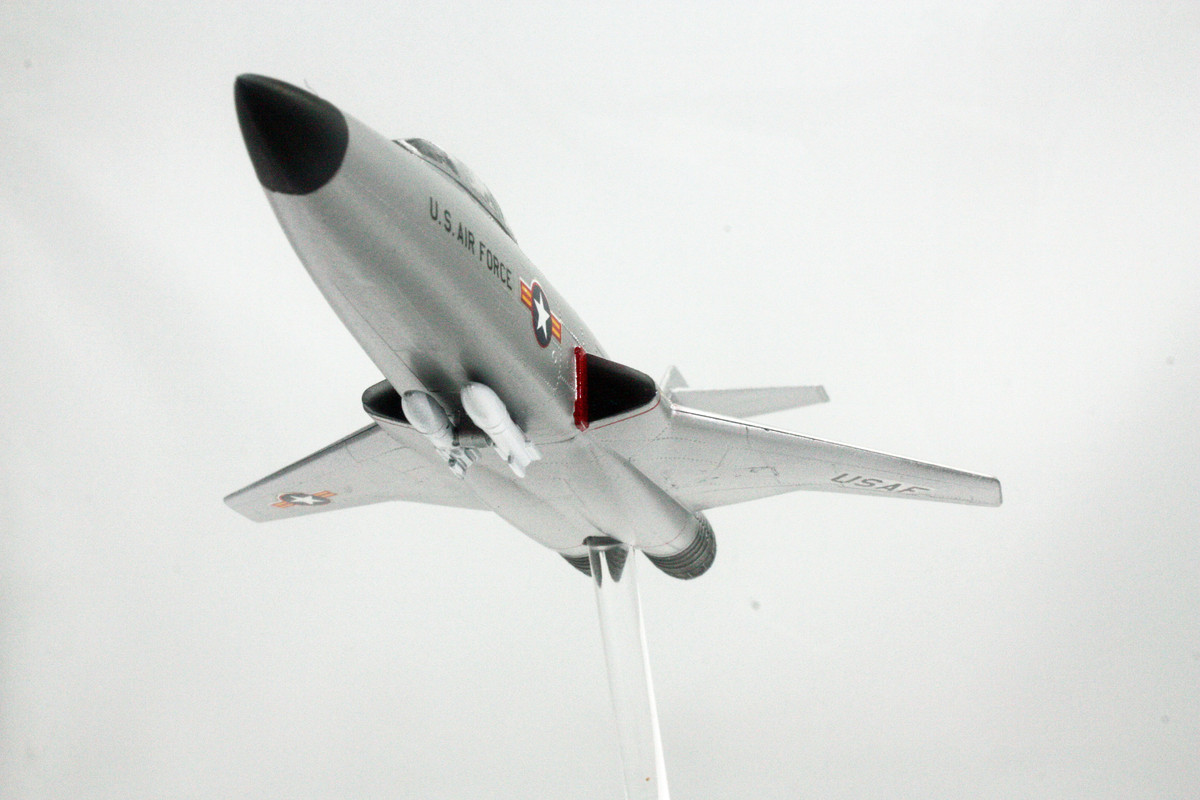

I decided early on to build this Voodoo "in flight".  With that in mind, I needed a stand, as this is a Monogram kit that did not come with one of their little stands.  I used some acrylic rod and cut out a V shaped wooden base for the task, and enlisted my daughter to decorate the base.  I had to explain to her this aircraft, known as the Voodoo, and suggested a theme based on voodoo imagery and the Disney movie The Princess and the Frog with its voodoo-dude villain.  I think she did a good job painting the base.

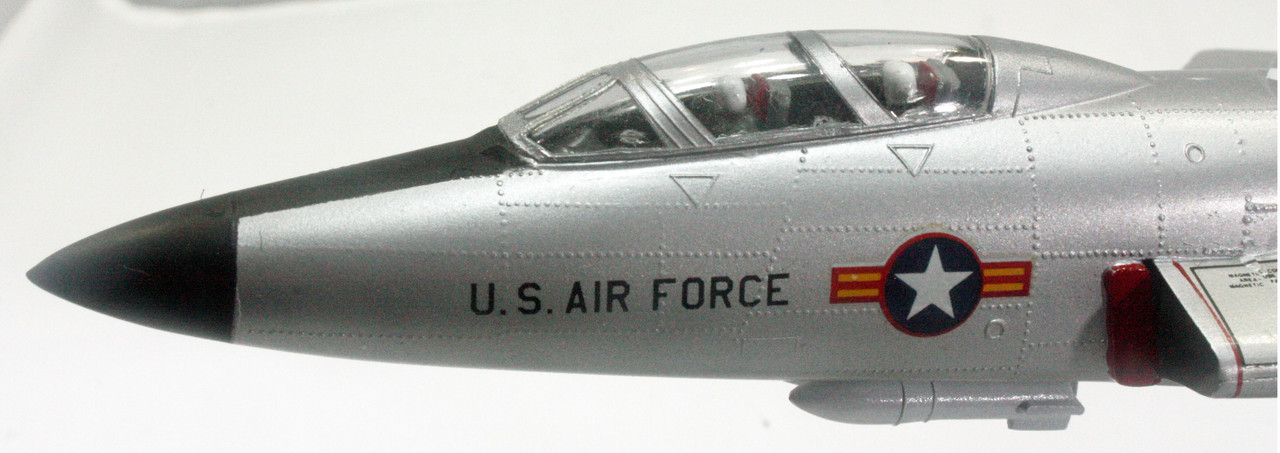

The kit did include a small decal sheet that was 52 years old.  I sprayed it with some Testors decal solution, let it sit over night, and when I cut out the decals and put them in water ... nothing happened.  I soaked them well longer than normal, and those decals never budged.  I don't know if the use of the Testors maybe sealed them to the paper backing, or if these decals were just bad, but whatever, I scrounged my spares box to find the U.S. AIR FORCE, USAF, tiger heads, and national insignia.  The insignia is clearly wrong for this aircraft, but they were close to the right size, and they beat having no insignia.

Next up is the Monogram Pro-Modeler F-102 Delta Dagger.

  • Member since
    December 2002
  • From: Northern California
Posted by jeaton01 on Tuesday, March 24, 2020 12:41 PM

These old kits are a lot of fun.  I have a couple of grandchildren that help me build them.

John

To see build logs for my models:  http://goldeneramodel.com/mymodels/mymodels.htm



  • Member since
    November 2008
  • From: Central Florida
Posted by plasticjunkie on Tuesday, March 24, 2020 2:52 PM

Aggie, the same thing happened to the Hasegawa decals from the Oscar I'm building. My decals are from 1973 and would not separate from the paper therefore I'm in the process of spraying the markings using stencils.

Good job done on that golden oldie kit.

 GIFMaker.org_jy_Ayj_O





Too many models to build, not enough time in a lifetime!!

  • Member since
    April 2015
Posted by Mopar Madness on Tuesday, March 24, 2020 4:48 PM

Not bad at all! I have a few old Frog kits in the stash I need to dig in to.

Chad

God, Family, Models...

At the plate: 1/144 Revell Snowberry

On deck: 1/48 Tamiya Fw 190A4

In the hole: 1/48 Hasegawa Fw 190A4

  • Member since
    November 2003
  • From: State of Mississippi. State motto: Virtute et armis (By valor and arms)
Posted by mississippivol on Tuesday, March 24, 2020 8:34 PM
That is awesome!
  • Member since
    January 2015
  • From: Katy (Houston), TX
Posted by Aggieman on Wednesday, March 25, 2020 5:58 PM

jeaton01

These old kits are a lot of fun.  I have a couple of grandchildren that help me build them.



This was a trouble-free build, but then there are not a lot of parts in the box though.  I'm not quite there yet for grandchildren (although our oldest told us that he and his wife are targeting three years from now to start their family).

  • Member since
    January 2015
  • From: Katy (Houston), TX
Posted by Aggieman on Wednesday, March 25, 2020 6:00 PM

plasticjunkie

Aggie, the same thing happened to the Hasegawa decals from the Oscar I'm building. My decals are from 1973 and would not separate from the paper therefore I'm in the process of spraying the markings using stencils.

Good job done on that golden oldie kit.



Thank you for your kind words!  I guess it's a hit-and-miss thing regarding old decals.  I did an old box-scale C-47 (Monogram) last summer, and had no issues with those decals, which were of similar age to this Voodoo.

  • Member since
    January 2015
  • From: Katy (Houston), TX
Posted by Aggieman on Wednesday, March 25, 2020 6:01 PM

Mopar Madness

Not bad at all! I have a few old Frog kits in the stash I need to dig in to.



Chad, thank you for your kind words!  I've never actually built a Frog kit (unless I did so as a youngster and just don't remember).

  • Member since
    January 2015
  • From: Katy (Houston), TX
Posted by Aggieman on Wednesday, March 25, 2020 6:01 PM

mississippivol
That is awesome!


Vol, thank you for your kind words!
