Revell Germany 1/48 X-35A build
Posted by stikpusher on Thursday, January 7, 2021 4:29 PM

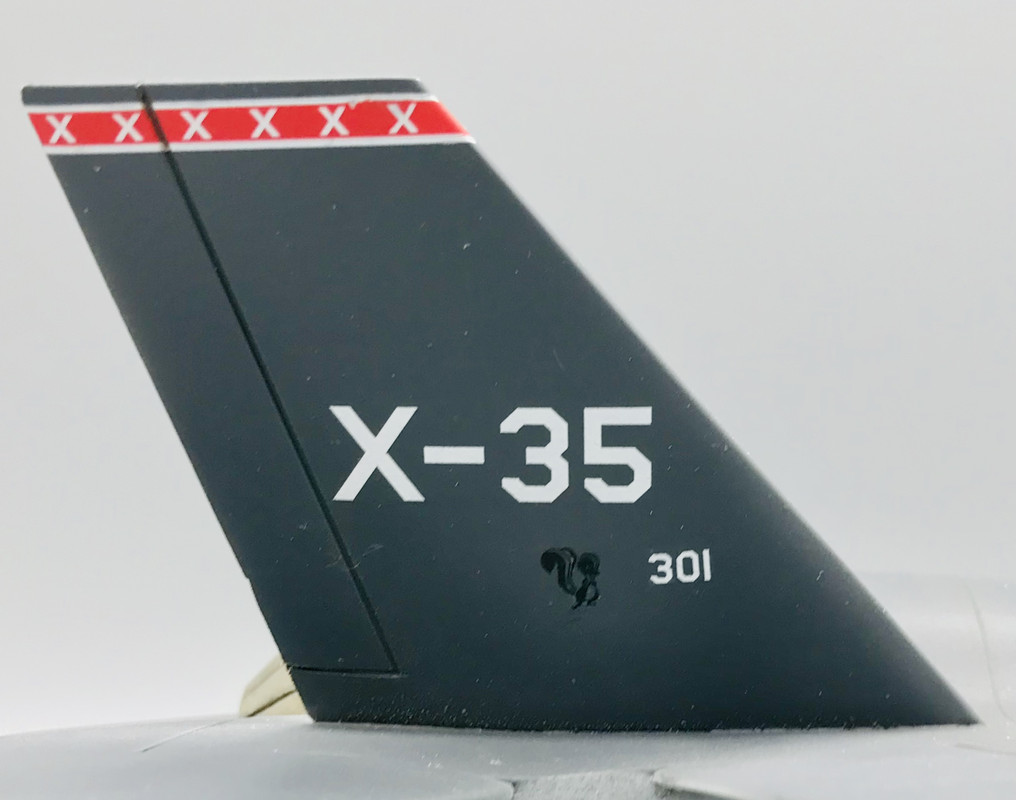

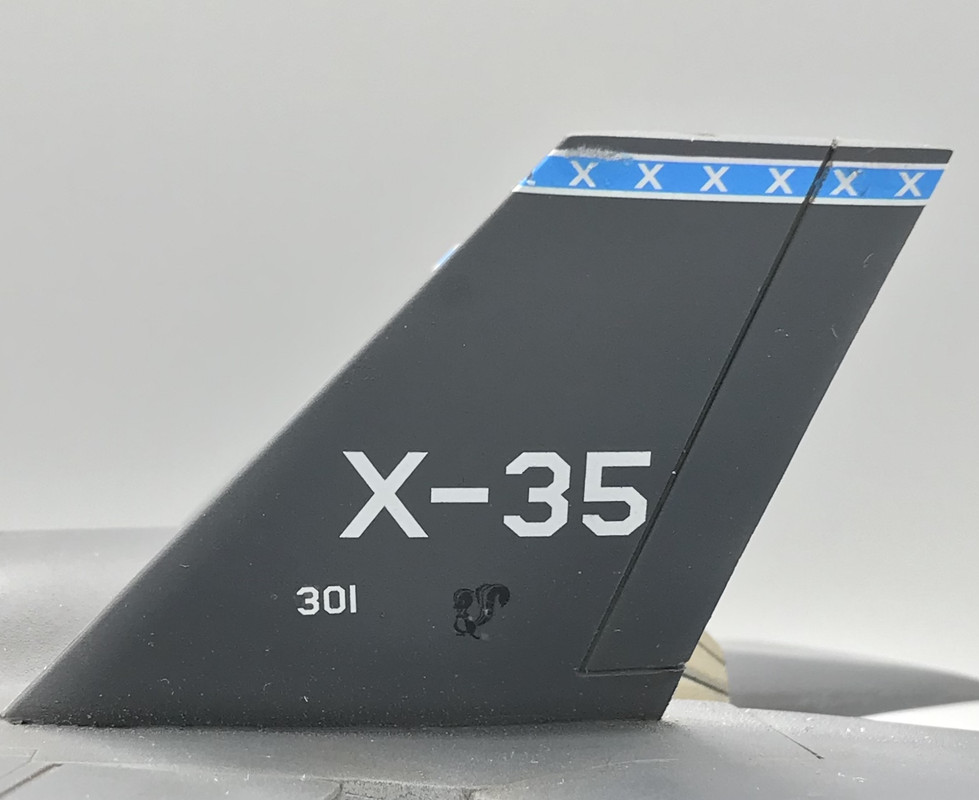

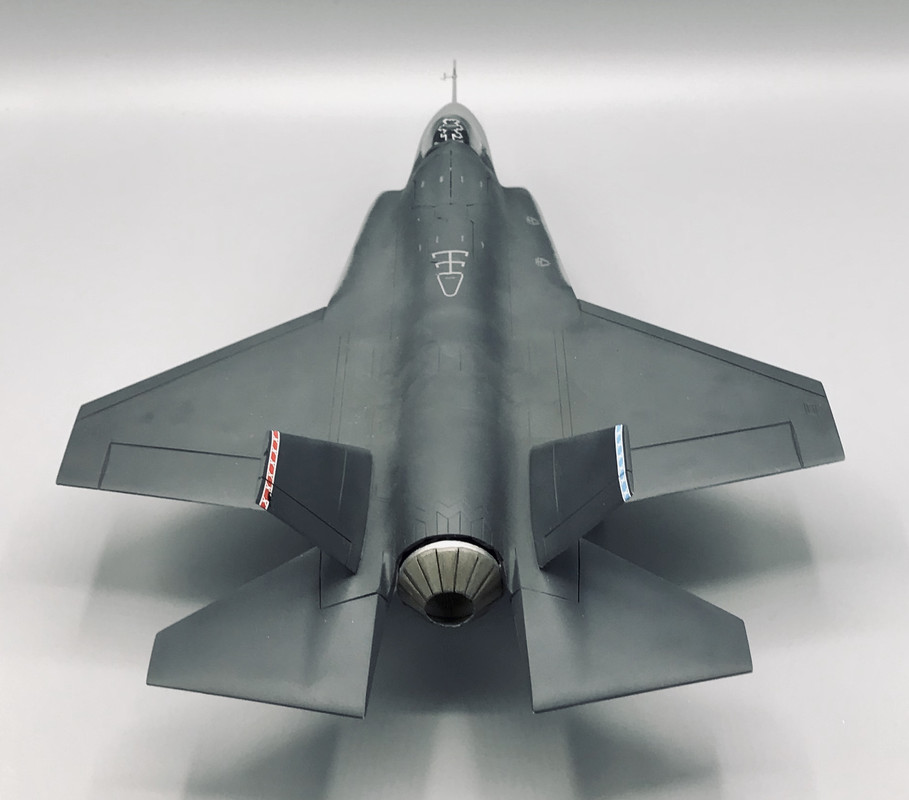

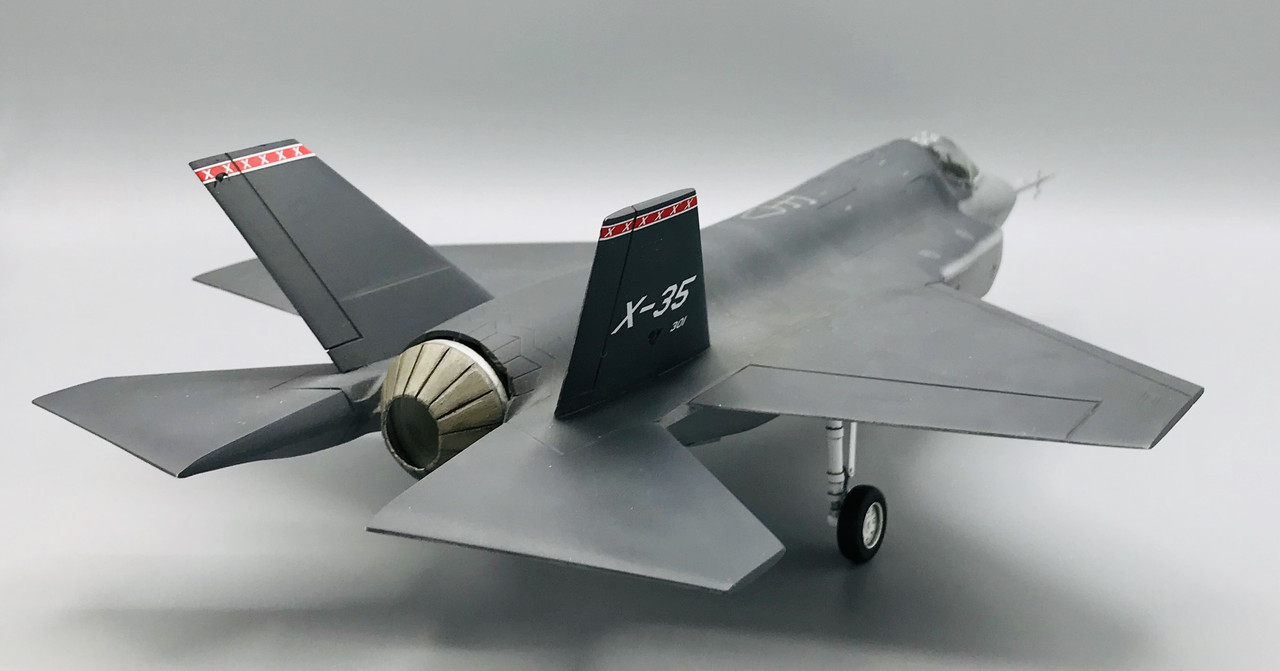

Where do I begin with this tale? Well, I bought it on clearance at the PX on our base when I was on deployment overseas in 2005. I never built it there, so I shipped it home to build at a later date. It is boxed as a F-35A JSF. Fast forward 2005, and I am now live no near Luke AFB and see F-35s flying overhead nearly every day, so I am inspired to build this. I open up the kit, start doing research, and see that this it is not a F-35 as it says on the box, but is instead a X-35. Or at least it is closer to a X-35A than to a F-35A. The basic airframe lines are the X-35, although it is missing several prominent features. And it has multiple F-35A features added like weapons bays and under fuselage contours. The wheel wells and doors are something of a cross between highly inaccurate and fictitious. But hey, I got it for cheap, and I wasn’t gonna let it defeat me or throw it away. So I modified the cockpit, creating a proper instrument panel, modifying the kit ejection seat to resemble the seat actually used in the aircraft, and added some of the missing detail to the otherwise large empty shelf behind the seat. I sealed up the weapons bays, as the X-35 did not have those, added the APU exhaust to the fuselage right side, and modified the kit afterburner nozzle from the F-35 multi faceted style petals to the more standard type used on the X-35. I also took an instrumentation boom from another kit in my stash, and modified it to the configuration seen on the X-35A during flight test at Edwards. I also modified the kit canopy to appear like the two piece side opening canopy of the X-35, rather than the single piece item that comes in this kit.

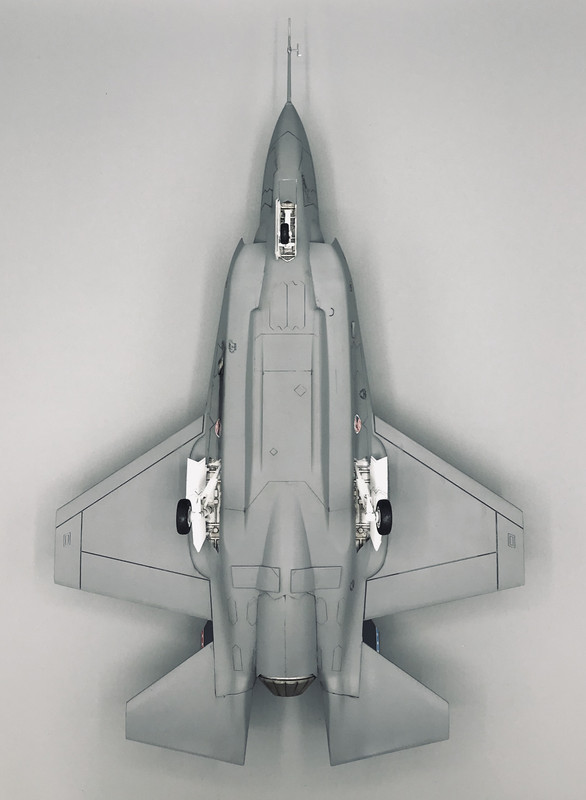

I did not modify the wheel wells or landing gear doors as aside from the nose well, that would have been a major surgery. As would have been correcting the fuselage underside profile. In the end, I have something that looks mostly like a X-35A, aside from the lower fuselage.























Thanks for looking, comments and critiques are welcome.



F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM



  • Member since
    December 2002
  • From: Northern California
Posted by jeaton01 on Friday, January 8, 2021 12:34 AM

Jeez, Stik, where are all the jet guys!  Maybe by the title they thought it was there X-wife!

John

To see build logs for my models:  http://goldeneramodel.com/mymodels/mymodels.htm



  • Member since
    July 2004
  • From: Sonora Desert
Posted by stikpusher on Friday, January 8, 2021 9:26 AM

Lol! Thanks John. I was kinda wondering the same thing. Lots of looks onto this post, but only you have commented.



F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM



  • Member since
    August 2015
  • From: the redlands Fl
Posted by crown r n7 on Friday, January 8, 2021 9:41 AM

Nice clean jet Yes

 .Nick

  • Member since
    June 2017
  • From: Winter Park, FL
Posted by fotofrank on Friday, January 8, 2021 10:11 AM

OK, Stik, here we go. I'm not really a jet builder, especially modern stealth jets. They're just not very stylish like the early first and second generation jets. However I did build the Hasegawa F-35A back in the spring. The build was dedicated to my brother, Gerry, who was a systems engineer on the F-35 project at Ft. Worth. We can certainly see the similarities between the prototype and the production airplanes.

Gerry lived with our mom and dad in Sun City West while he was at ASU working toward his engineering degree. After ASU, he eventually found his way to Lockheed Martin in Ft. Worth and the F-35 program. I wanted to build the kit as a Luke aircraft but instead built it as a 33rd FW at Eglin AFB. I know Gerry would approve. He was very proud to have been associated with the program.

The Hasegawa F-35A kit is an excellent kit and the display stand is part of the kit which is why I chose the kit. Jets just look better when posed in flight.

OK. On the bench: Way too much to build in one lifetime...

  • Member since
    November 2009
  • From: SW Virginia
Posted by Gamera on Friday, January 8, 2021 11:14 AM

Ya gotta love companies that put out kits based on prototypes with some fictional details in order to be the first to have a kit on the market. Great job there on modifying the kit and the paint work. Never really liked the looks of the plane but you did a fantastic job on her!!!

And Frank, very nice work there too!

"I dream in fire but work in clay." -Arthur Machen



  • Member since
    July 2004
  • From: Sonora Desert
Posted by stikpusher on Friday, January 8, 2021 1:53 PM

Nick, Frank, and Gamera, thank you.

Frank, thanks for sharing that build and story about your brothers connection to the JSF program here. That’s a good looking build.

Gamera, it is indeed a bit frustrating about its of “production” aircraft being being based off of the prototype. Especially before the development program is complete and changes from that are incorporated into the final design. Then add to that they added production features onto the prototype airframe. They could have had a perfectly fine X-35 with this and gotten all the shapes right, but... Grrrr.... It’s happened before on models, and will happen again.



F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM



  • Member since
    April 2015
Posted by Mopar Madness on Friday, January 8, 2021 3:56 PM

Ok Stik, I'd say you nailed that finish!

Chad

God, Family, Models...

At the plate: 1/72 Revell He177 & 1/35 Tamiya Sdkfz 251

On deck: 1/35 Bronco LWS

In the hole: 1/144 Revell S-100

  • Member since
    July 2004
  • From: Sonora Desert
Posted by stikpusher on Friday, January 8, 2021 4:36 PM

Thank you Chad. I do appreciate your thoughts on this one.



F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM



  • Member since
    July 2009
  • From: North Carolina
Posted by Back to the bench on Sunday, January 17, 2021 12:59 PM

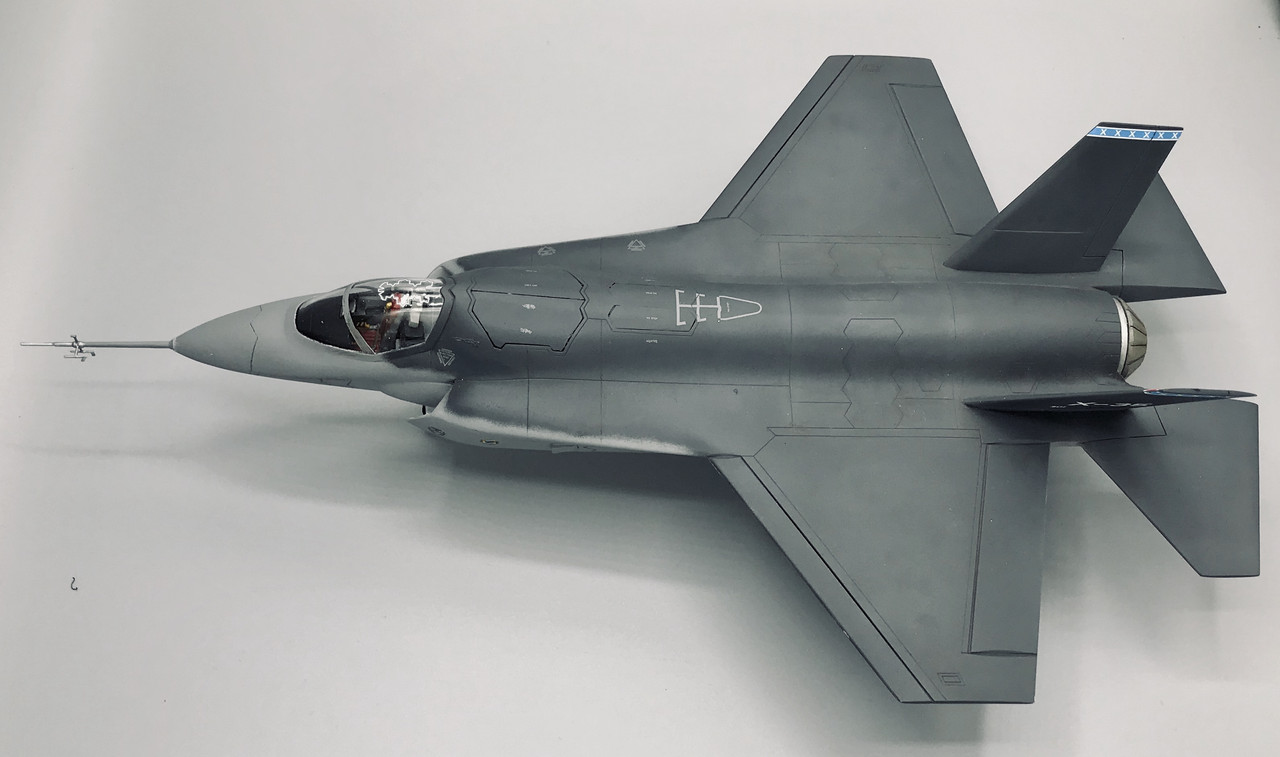

A really nice, clean build for an interesting subject. I really like the finish and the first photo especially shows nice color modulation. Mind if I ask how you achieved the color modulation (especially on the top side)?

Gil
  • Member since
    July 2004
  • From: Sonora Desert
Posted by stikpusher on Sunday, January 17, 2021 2:39 PM

Thank you Gil. The modulation was something of an accident. I grabbed the Neutral Gray and accidentally put a few drops into my airbrush when I was intending to use Gunship Gray for touch ups. Rather than cleaning it out, I added Gunship Gray, turned it into a lightened shade, thinned it out, and used it for faded effect on the top surfaces in selected areas.



F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM



  • Member since
    July 2009
  • From: North Carolina
Posted by Back to the bench on Sunday, January 17, 2021 3:09 PM

Awesome, a nice recovery from an oops is still something to be proud of! Regardless of the reason it still looks really good.

Gil
  • Member since
    January 2020
  • From: Maryland
Posted by wpwar11 on Sunday, January 17, 2021 4:06 PM

Nice work Stik.  Always liked this jet.  I believe they test the F35B and C right here in Southern MD.

  • Member since
    May 2011
  • From: Honolulu, Hawaii
Posted by Real G on Sunday, January 17, 2021 6:52 PM

Hey Stik, whose kit is that, originally? I don't think Revell ever tooled a 1/48 X-35.

“Ya ya ya, unicorn papoi!”

  • Member since
    July 2004
  • From: Sonora Desert
Posted by stikpusher on Sunday, January 17, 2021 7:42 PM

The kit was originally tooled by Panda Models. Revell Germany got ahold of the molds within a year or two.





F is for FIRE, That burns down the whole town!

U is for URANIUM... BOMBS!

N is for NO SURVIVORS...

       - Plankton

LSM
